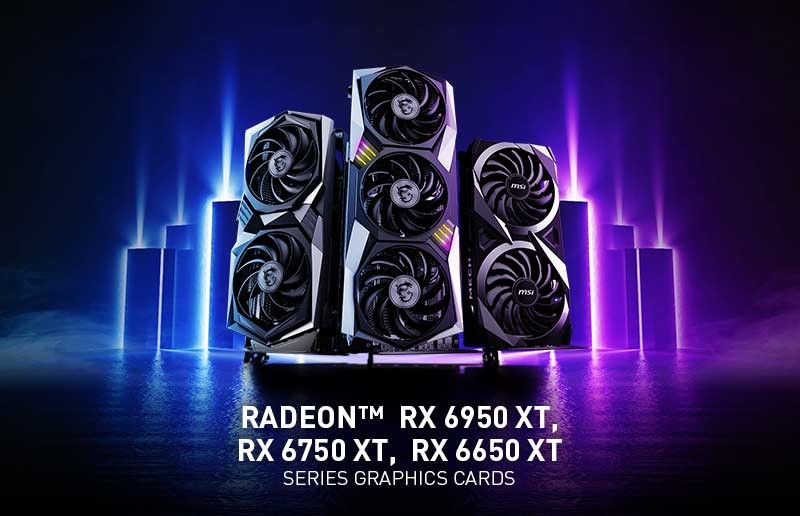

MSI 宣布推出由 AMD Radeon™ RX 6950 XT、Radeon RX 6750 XT 和 Radeon RX 6650 XT GPU 提供支援的新顯示卡系列，提供最新的圖形功能、先進的電路板設計和優秀的散熱技術。
突破性的 AMD RDNA™ 2 遊戲架構
新推出的顯示卡利用突破性的 AMD RDNA™ 2 遊戲架構，包括流程優化及軟體和韌體增強，並提供高頻寬、低延遲的 AMD Infinity Cache™ 內存技術和超快的 18Gbps GDDR6 記憶體。同時還支持 Microsoft Windows 11 和 Microsoft DirectX® 12 Ultimate、AMD FidelityFX™ Super Resolution (FSR)、即將推出的 AMD FSR 2.0iii 和 AMD Radeon Super Resolutioniv 升級技術，以及其他提供視覺震撼、高刷新率的優異遊戲體驗。
GAMING TRIO Series

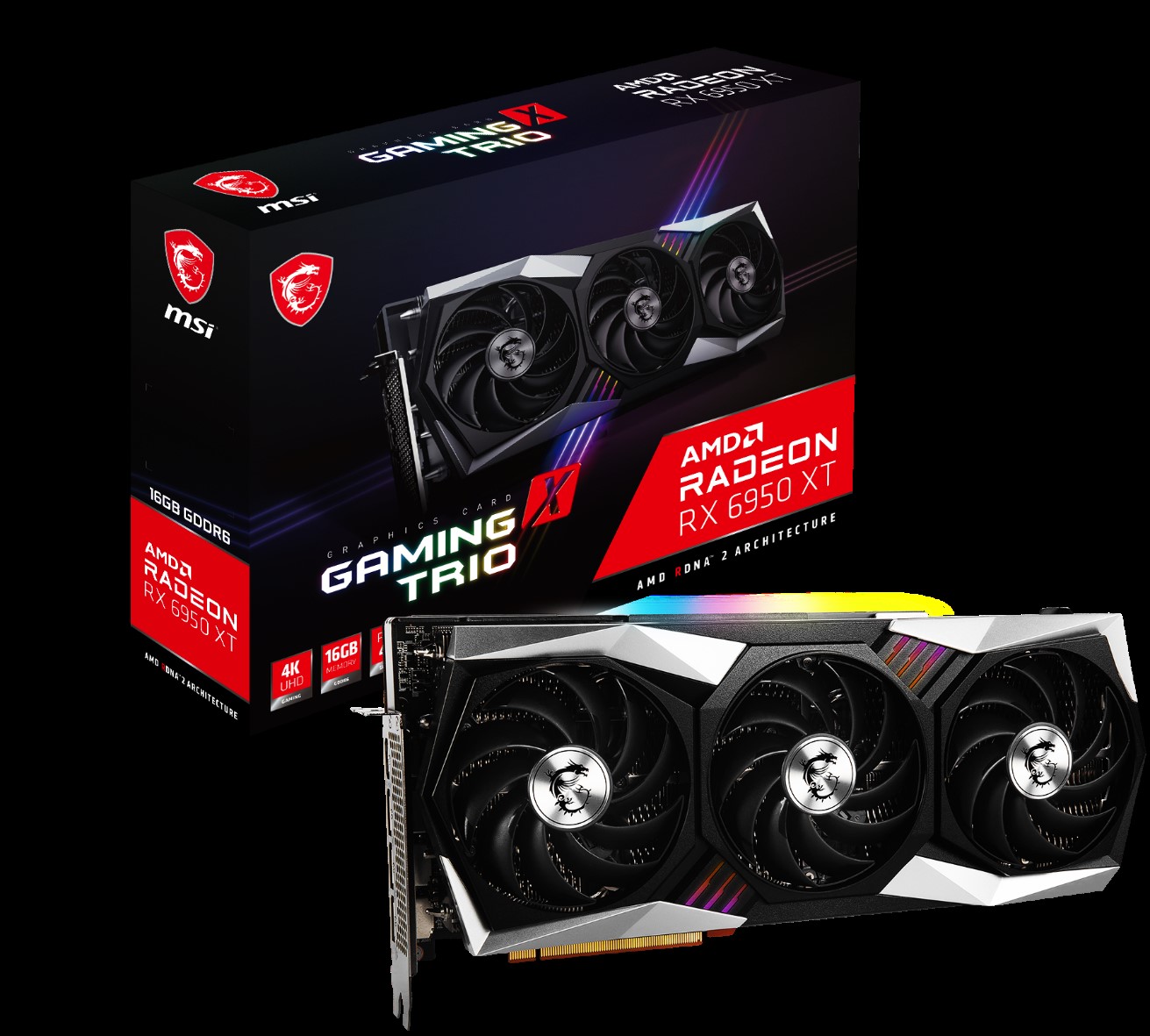

MSI 新的 MSI Radeon RX 6950 XT、Radeon RX 6750 XT 和 Radeon RX 6650 XT GAMING TRIO 系列顯示卡中包含了我們一流的散熱 DNA。 GAMING 系列繼承了標誌性的 TRI FROZR 2 和 TWIN TROZR 8 散熱解決方案，分別採用三風扇和雙風扇設計。這些冷卻器的關鍵是獨特的 TORX FAN 4.0，它使用成對的風扇葉片與外環設計鏈接結合在一起，將氣流集中到下方的升級散熱器中，以實現最大的冷卻效率。大型鍍鎳銅底座顯著改善了 GPU 和記憶體模組的散熱（僅在 Radeon RX 6950 XT GAMING TRIO 系列上可用）。氣流控制設計改善了通過散熱器的氣流動態，從而改善散熱效果和更安靜的聲學效果。此外，Mystic Light 裝飾在顯示卡的外部，透過 Mystic Light Sync 和 Ambient Link 與 PC 的其他組件同步照明，並皆可透過 MSI Center 軟體控制。
MECH Series
MECH 系列新加入了採用 MSI Radeon RX 6750 XT 和 RX 6650 顯示卡的型號，現在透過 MSI 廣受好評的 TORX FAN 3.0 進行了增強。以效能為中心的 MECH 設計保持了完成手頭上任何任務的基本要素，無論是娛樂還是工作。強大的冷卻系統、強化的髮絲紋飾面背板和堅固的工藝美學使 MECH 卡適用於任何 PC 架構。
MSI Center獨家軟體套件透過方便操作使用的程序，加強使用者體驗。例如，Frozr AI Cooling 將連接到相容的 MSI 主板系統風扇統一起來，以對 GPU 散熱變化做出反應。
MSI Afterburner 是全球知名度最高、使用最廣泛的顯示卡超頻軟體。它提供對顯示卡的完全控制，並讓使用者能夠隨時監控關鍵系統指標。Afterburner 為流暢的遊戲體驗提供了免費的效能提升，高幀數提供更順暢的遊戲體驗。
供貨狀況
全新MSI AMD RadeonTM RX 6950 XT/ Radeon RX 6750 XT/6650 XT 顯示卡2022年5月11日上市.
| MODEL NAME | MSI Radeon™ RX 6950 XT GAMING X TRIO 16G | MSI Radeon™ RX 6950 XT GAMING TRIO 16G | MSI Radeon™ RX 6750 XT GAMING X TRIO 12G | MSI Radeon™ RX 6750 XT GAMING TRIO 12G |
| GPU | AMD Radeon™ RX 6950 XT | AMD Radeon™ RX 6950 XT | AMD Radeon™ RX 6750 XT | AMD Radeon™ RX 6750 XT |
| INTERFACE | PCI Express® Gen 4 | PCI Express® Gen 4 | PCI Express® Gen 4 | PCI Express® Gen 4 |
| CUDA® CORES | 5120 Units | 5120 Units | 2560 Units | 2560 Units |
| CORE CLOCKS | Boost Clock[i]: Up to 2454 MHz Game Clock[ii]: Up to 2244 MHz | Boost Clock: Up to 2324 MHz Game Clock: Up to 2116 MHz | Boost Clock: Up to 2623 MHz Game Clock: Up to 2554 MHz | Boost Clock: Up to 2600 MHz Game Clock: Up to 2495 MHz |
| MEMORY SPEED | 18 Gbps | 18 Gbps | 18 Gbps | 18 Gbps |
| MEMORY | 16GB GDDR6 | 16GB GDDR6 | 12GB GDDR6 | 12GB GDDR6 |
| MEMORY BUS | 256-bit | 256-bit | 192-bit | 192-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| HDCP SUPPORT | Y | Y | Y | Y |
| POWER CONSUMPTION | 340 W | 340 W | 250 W | 250 W |
| POWER CONNECTORS | 8-pin x 3 | 8-pin x 3 | 8-pin x 2 | 8-pin x 2 |
| RECOMMENDED PSU | 850 W or greater | 850 W or greater | 650 W or greater | 650 W or greater |
| CARD DIMENSION (MM) | 325 x 140 x 55mm | 325 x 140 x 55mm | 327 x 137 x 56 mm | 327 x 137 x 56 mm |
| WEIGHT (CARD / PACKAGE) | 1605 g / 2434 g | 1605 g / 2434 g | 1368 g / 2158 g | 1368 g / 2158 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate | 12 Ultimate | 12 Ultimate | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 | 4.6 | 4.6 | 4.6 |
| MAXIMUM DISPLAYS | 4 | 4 | 4 | 4 |
| VR READY | Y | Y | Y | Y |
| FreeSync™ TECHNOLOGY | Y | Y | Y | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 | 7680 x 4320 | 7680 x 4320 | 7680 x 4320 |
| MODEL NAME | Radeon™ RX 6750 XT MECH 2X 12G OC | Radeon™ RX 6750 XT MECH 2X 12G | Radeon™ RX 6650 XT GAMING X 8G | Radeon™ RX 6650 XT GAMING 8G |
| GPU | AMD Radeon™ RX 6750 XT | AMD Radeon™ RX 6750 XT | AMD Radeon™ RX 6650 XT | AMD Radeon™ RX 6650 XT |
| INTERFACE | PCI Express® Gen 4 | PCI Express® Gen 4 | PCI Express® Gen 4 x8 | PCI Express® Gen 4 x8 |
| CUDA® CORES | 2560 Units | 2560 Units | 2048 Units | 2048 Units |
| CORE CLOCKS | Boost Clock: Up to 2618 MHz Game Clock: Up to 2512 MHz | Boost Clock: Up to 2600 MHz Game Clock: Up to 2495 MHz | Boost Clock: Up to 2694 MHz Game Clock: Up to 2523 MHz | Boost Clock: Up to 2635 MHz Game Clock: Up to 2410 MHz |
| MEMORY SPEED | 18 Gbps | 18 Gbps | 17.5 Gbps | 17.5 Gbps |
| MEMORY | 12GB GDDR6 | 12GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 |
| MEMORY BUS | 192-bit | 192-bit | 128-bit | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| HDCP SUPPORT | Y | Y | Y | Y |
| POWER CONSUMPTION | 250 W | 250 W | 175 W | 175 W |
| POWER CONNECTORS | 8-pin x 2 | 8-pin x 2 | 8-pin x 1 | 8-pin x 1 |
| RECOMMENDED PSU | 650 W or greater | 650 W or greater | 500 W or greater | 500 W or greater |
| CARD DIMENSION (MM) | 249 x 132 x 52 mm | 249 x 132 x 52 mm | 278 x 130 x 51 mm | 278 x 130 x 51 mm |
| WEIGHT (CARD / PACKAGE) | 932 g / 1414 g | 932 g / 1414 g | 894 g /1481 g | 894 g /1481 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate | 12 Ultimate | 12 Ultimate | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 | 4.6 | 4.6 | 4.6 |
| MAXIMUM DISPLAYS | 4 | 4 | 4 | 4 |
| VR READY | Y | Y | Y | Y |
| FreeSync™ TECHNOLOGY | Y | Y | Y | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 | 7680 x 4320 | 7680 x 4320 | 7680 x 4320 |
| MODEL NAME | MSI Radeon™ RX 6650 XT MECH 2X 8G OC | MSI Radeon™ RX 6650 XT MECH 2X 8G |
| GPU | AMD Radeon™ RX 6650 XT | AMD Radeon™ RX 6650 XT |
| INTERFACE | PCI Express® Gen 4 x8 | PCI Express® Gen 4 x8 |
| CUDA® CORES | 2048 Units | 2048 Units |
| CORE CLOCKS | Boost Clock: Up to 2669 MHz Game Clock: Up to 2447 MHz | Boost Clock: Up to 2635 MHz Game Clock: Up to 2410 MHz |
| MEMORY SPEED | 17.5 Gbps | 17.5 Gbps |
| MEMORY | 8GB GDDR6 | 8GB GDDR6 |
| MEMORY BUS | 128-bit | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| HDCP SUPPORT | Y | Y |
| POWER CONSUMPTION | 175 W | 175 W |
| POWER CONNECTORS | 8-pin x 1 | 8-pin x 1 |
| RECOMMENDED PSU | 500 W or greater | 500 W or greater |
| CARD DIMENSION (MM) | 235 x 125 x 47 mm | 235 x 125 x 47 mm |
| WEIGHT (CARD / PACKAGE) | 675 g / 1142 g | 675 g / 1142 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 | 4.6 |
| MAXIMUM DISPLAYS | 4 | 4 |
| VR READY | Y | Y |
| G-SYNC® TECHNOLOGY | Y | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 | 7680 x 4320 |
* 產品規格、功能和外觀可能因型號和國家/地區而異。所有規格如有更改，恕不另行通知。
MSI微星科技中文官網：https://tw.msi.com/
MSI微星科技臉書粉絲團：https://www.facebook.com/MSITaiwan/
[i] 'Boost Clock Frequency is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
[ii] Game clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
iii AMD FidelityFX Super Resolution (FSR) 1.0 and 2.0 are available on select games and require developer integration. See https://www.amd.com/en/technologies/fidelityfx-super-resolution for a list of supported games. AMD FidelityFX Super Resolution is “game dependent” and is supported on the following AMD products. FSR 1.0: AMD Radeon™ RX 6000, RX 5000, RX 500, RX Vega series graphics cards, RX 480, RX 470, RX 460, and all AMD Ryzen™ processors with Radeon™ graphics if the minimum requirements of the game are met. FSR 2.0: AMD Radeon™ RX 6000, RX 5000, RX Vega Series graphics cards, and the Radeon™ RX 590 graphics card if the minimum requirements of the game are met. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendors' graphics cards. GD-187.
iv As of March 2022, Radeon Super Resolution is compatible with Radeon RX 5000 series graphics and newer and works with games that support exclusive full-screen mode. AMD Software: Adrenalin Edition 22.3.1 or newer is required. For additional information, visit www.amd.com/rsr. GD-197.
